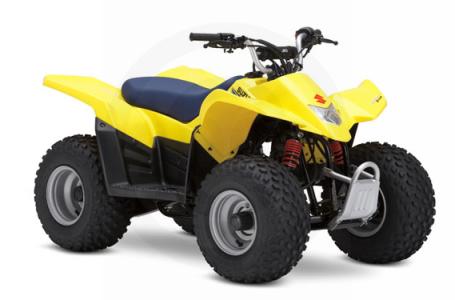

2008 Suzuki QuadSport® Z50

LTZ50

Now until April 1, 2012
$400.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

With the QuadSport LT-Z50, there's another great way to get the whole family involved in the off-road fun. With a smooth and torquey four-stroke engine, it offers performance that's ideal for beginning riders just developing their skills. As a small and lightweight ATV, it's designed for adult-supervised beginning riders ages 6 year and older. And it has a variety of features, such as smooth running CVT automatic transmission which provides easy operation allowing the rider to


focus on riding instead of shifting. Plus an electric starting system to help your youngster spend time learning to ride right - and that's sure to put a parent's mind at ease.

    Key Features
    • QuadSport Z50 is designed for adult-supervised riders age 6 and older - includes many features that make learning to ride a safe and fun experience
    • 50cc 4-stroke youth ATV that combines modern sport styling inspired by the championship-winning QuadSport Z400 and a quiet, smooth-running engine
    • Electric starting system plus standard recoil starter
    Engine Features
    • Compact 49cc 4-stroke, single-cylinder, air-cooled engine designed for durability and low maintenance
    • Smooth running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting
    • Simple screw-type throttle limiter allows parents to control maximum speed
    • Large 2.6 liter fuel tank for long operating range
    Chassis Features
    • Modern styling with integrated floorboards and a big Quad look, plus bright yellow or white paint and graphics
    • Child-size (Y-6) controls for easy operation
    • Strong, high-rigidity steel frame
    • Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride
    • Large diameter front drum brakes and single rear drum brake provide strong braking performance
    • One-piece 7-inch wheels with tubeless tires provide a smooth comfortable ride
    • Easy-to-remove seat for simplified maintenance
    • Suzuki T-shaped seat similar to the LT-R450 for smooth weight transition and a comfortable ride
    Specifications
    • Engine: 49.0cc, 4-stroke, single cylinder, air-cooled
    • Bore Stroke: 36.0 x 48.6mm
    • Compression Ratio: 8.4:1
    • Fuel System: MikuniT VM13
    • Lubrication: Wet Sump
    • Ignition: CDI
    • Transmission: V-belt, automatic
    • Final Drive: Chain
    • Overall Length: 1270mm (50.0 in.)
    • Overall Width: 770mm (30.3 in.)
    • Overall Height: 765mm (30.1 in.)
    • Seat Height: 535mm (21.1 in.)
    • Ground Clearance: 120mm (4.7 in.)
    • Wheelbase: 830mm (32.7 in.)
    • Dry Weight: 76kg (167 lbs.)
    • Suspension Front: Single A-arm, oil-damped, coil spring
    • Suspension Rear: Swing arm, oil-damped, coil spring
    • Brakes Front: Mechanical drum
    • Brakes Rear: Mechanical drum
    • Tires Front: AT 16 x 8-7
    • Tires Rear: AT 16 x 8-7
    • Fuel Tank Capacity: 2.6 liter (0.7 gal.)
    • Color: Yellow, White

    Specifications

    Engine
    Engine Type 4-Stroke
    Displacement 49 cc
    Bore x Stroke 36.0 x 48.6 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System MikuniT VM13
    Starting System Ignition: CDI; Electric starting system plus standard recoil starter
    Chassis
    Front Suspension Single A-arm, oil-damped, coil spring
    Front Brake Type Mechanical drum
    Front Tires AT 16 x 8-7
    Rear Suspension Swing arm, oil-damped, coil spring
    Rear Brake Type Mechanical drum
    Rear Tires AT 16 x 8-7
    Frame Strong, high-rigidity steel frame
    Dimensions/Capacities
    Dry Weight 167 lbs (76 kg)
    Fuel Capacity 0.7 gal (2.6 l)
    Ground Clearance 4.7 in. (120 mm)
    Machine Dimensions (LxWxH) 50 x 30.3 x 30.1 in. (1270 x 770 x 765 mm)
    Wheelbase 32.7 in. (830 mm)
    Drive Train
    Final Drive Chain
    Transmission V-belt, automatic
    General
    Colors Yellow, White
    Warranty 6 month limited warranty

    Compare Models

    		 Print








    Year 2008
    Manufacturer Suzuki
    Model QuadSport® Z50
    Style Sport
    MSRP* $1,899.00
    Chassis
    Front Suspension Single A-arm, oil-damped, coil spring
    Front Travel
    Front Brake Type Mechanical drum
    Front Tires AT 16 x 8-7
    Rear Suspension Swing arm, oil-damped, coil spring
    Rear Travel
    Rear Brake Type Mechanical drum
    Rear Tires AT 16 x 8-7
    Frame Strong, high-rigidity steel frame
    Dimensions/Capacities
    Dry Weight 167 lbs (76 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 0.7 gal (2.6 l)
    Ground Clearance 4.7 in. (120 mm)
    Machine Dimensions (LxWxH) 50 x 30.3 x 30.1 in. (1270 x 770 x 765 mm)
    Wheelbase 32.7 in. (830 mm)
    Drive Train
    Drive Train
    Final Drive Chain
    Transmission V-belt, automatic
    Engine
    Engine Type 4-Stroke
    Displacement 49 cc
    Bore x Stroke 36.0 x 48.6 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System MikuniT VM13
    Starting System Ignition: CDI; Electric starting system plus standard recoil starter
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Yellow, White
    Warranty 6 month limited warranty
